Wiring Details:
Joystick Wiring Bundle Includes:
Stickless Wiring Bundle Includes:
- Brook Zero Pi, PS4 Plus, XB Board and UFB PCBs require a Neutrik USB Adapter
- Bundles do not include harnesses for LS/DP/RS or Tournament Lockout switches

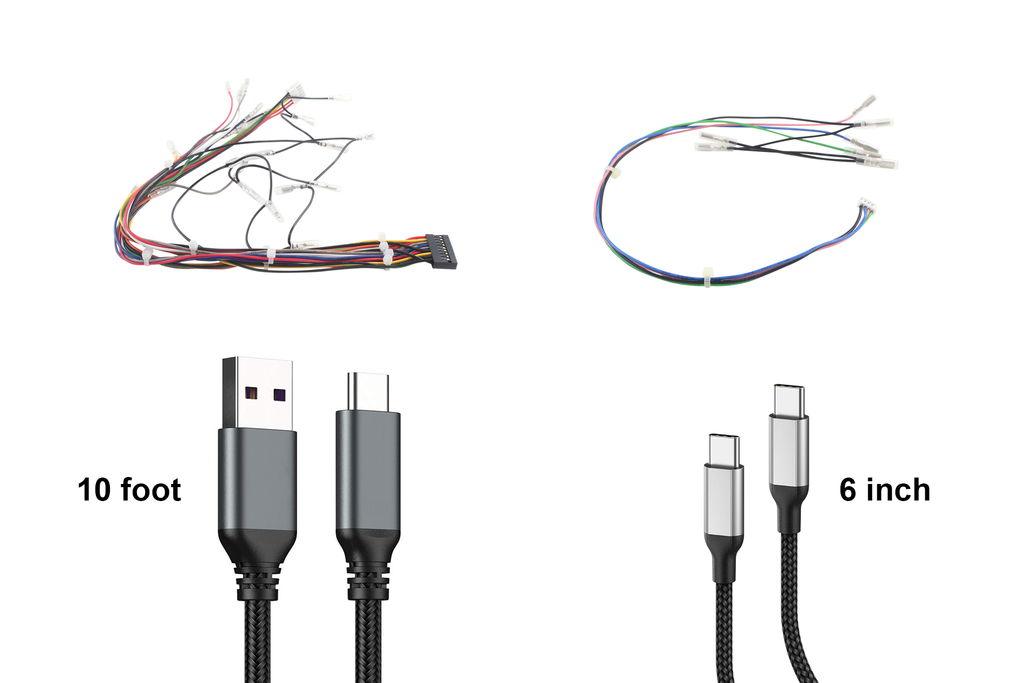

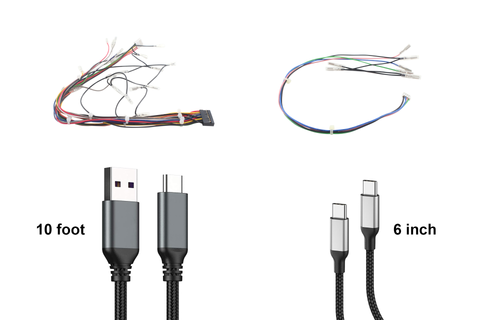

Joystick Wiring Bundle Includes:
- 10ft USB Cable
- 1.5ft Right Angle Internal USB Cable
- 20-pin Wiring Harness (Directional Input, Action Buttons, Main Option Buttons)
- 4-pin Wiring Harness (Touchpad click, L3, R3)

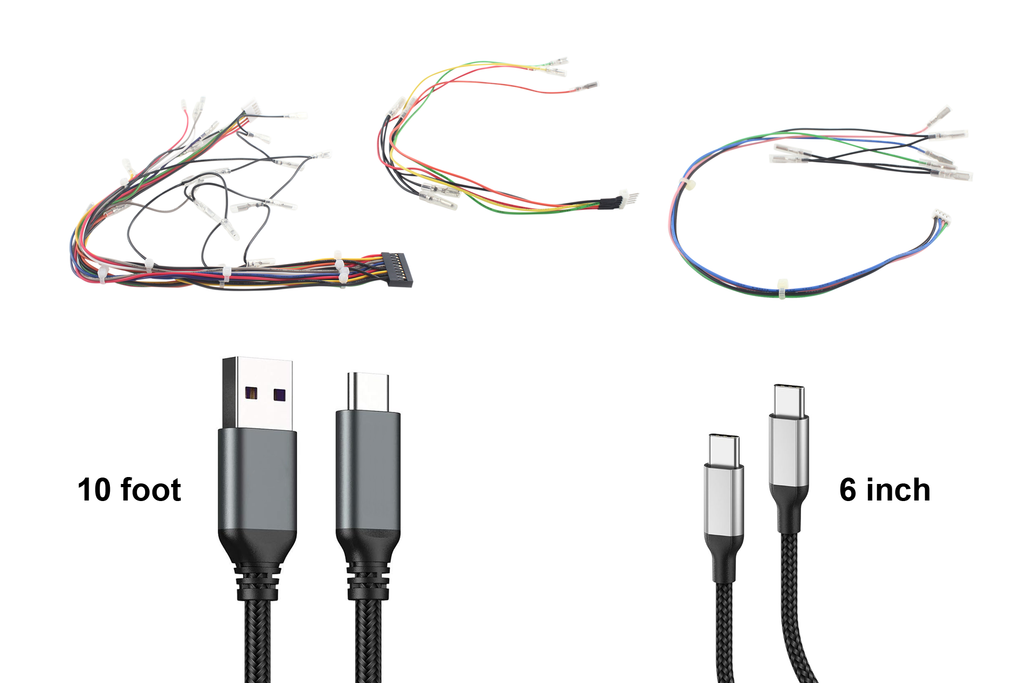

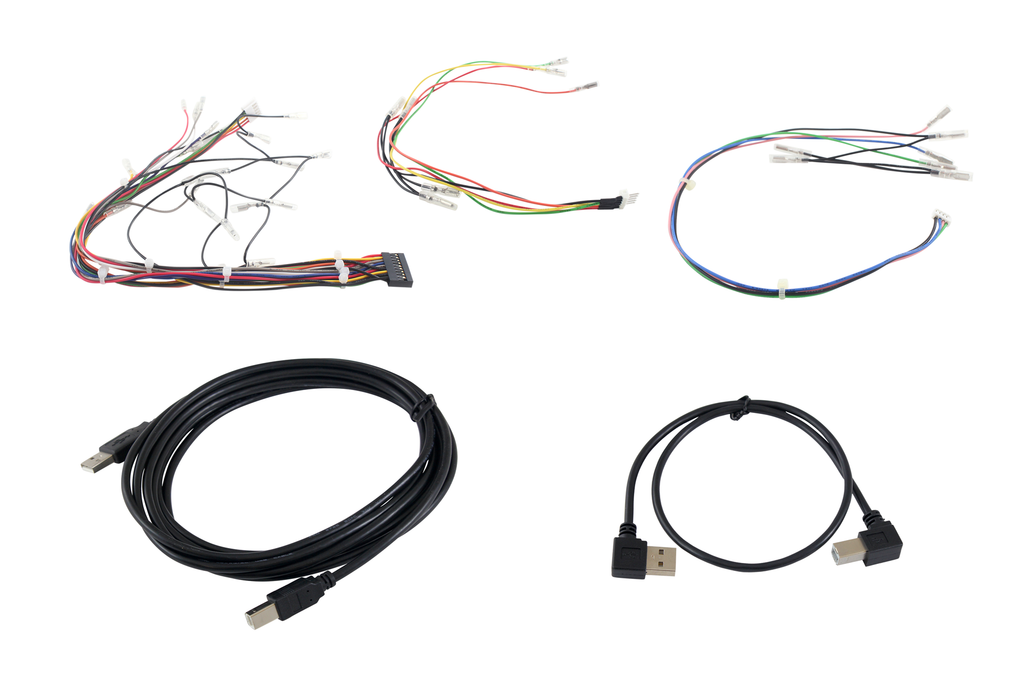

Stickless Wiring Bundle Includes:
- 10ft USB Cable
- 1.5ft Right Angle Internal USB Cable
- 20-pin Wiring Harness (Directional Input, Action Buttons, Main Option Buttons)
- 4-pin Wiring Harness (Touchpad click, L3, R3)
- 5-pin Stickless Conversion Harness
